Power Vac Combos

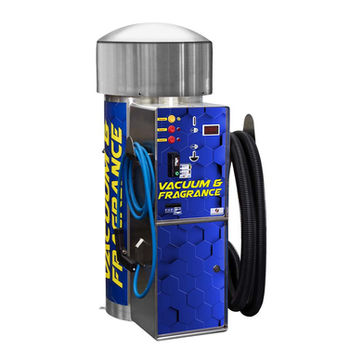

Vacuum & Fragrance!

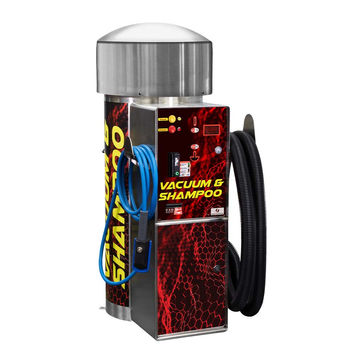

Vacuum & Shampoo!



The new IVS Power Vac Combos are designed to be wash owner friendly. These new products are easy to maintain and easy to service combination vacuums that allow you to sell your customers new features while costing you less.


2 fragrances or 1 shampoo capability.



No jugs or tanks to refill.

Compact profile uses standard vacuum mounting pattern for easy upgrading from your existing vacuums.

Product Specifications

Airflow: 194 cfm, 87 in. suction lift (water)

Motors: Two 900 Watt electric; 1 HP (max.) each, by-pass cooled, 7 amps each

Filters: Four bag system uses high performance napped synthetic filtration material, 15 sq. ft. effective filtration area and easy filter access service door.

Coin Mechanism: Mechanical type, accepts U.S. quarters.

Electronic Timer: Direct, switch-type, high capacity output, accumulates 1 to 15 coins, controls cycle time from 2 seconds to 8.5 minutes per coin.

Hose: 2 in. diameter x 15 ft. long, high flex crushable plastic, includes cuff and polyethylene hand tool.

304 Grade Stainless Steel Tank: 18 gauge, brushed finish, size: 42” (H) x 18.5” (D)

Mounting: Three lugs for ½ in. bolts (concealed front bolt).

Dimensions :

Unit: 52 in. (H) x 20 in. (W) x 27 in. (D)

With shipper: 56 in. (H) x 25 in. (W) x 29 in. (D)

Dome Dimensions :

Stainless steel: 20 in. (OD) x 10.5 in. (H)

Polyethylene: 21.5 in. (OD) x 12 in. (H)

Unit Weight : Net 105 lbs.

Options & Accessories

Dome Options:
Poly lighted colored domes available in:
Red, Blue, Green, Yellow and White.

Hose Color Options:
Red, Blue, Green, Yellow, White and Black.

Hose Options:

Standard 2" diameter hose.
Hose is tapered 2" to 1-½"


Quiet kit

Finish Options: Mirror finish

Motor Options:
Third motor upgrade
Quiet motor(s) upgrade
Special (export) voltage motors



Accessories:
Debris catchers

Acceptor Options

Multiple Coin/Token Acceptors



Mars Bill Acceptor



CryptoPay Credit Card System

High polish mirror finish
