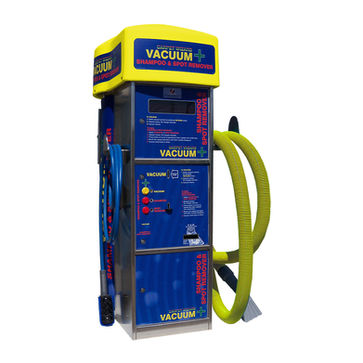

Vacuum with Shampooer & Spot Remover
Dual-purpose solution eliminates the need for separate shampoo and spot remover. Lowers your overhead and streamlines your product refill schedule.
Service selection buttons let customers easily switch between vacuum, shampoo and spot remover modes. Reduces customer confusion and offers greater value.
Built-in Talos bill validator accepts $1 - $20 bills. Your customers will love the convenience. You’ll love the added profits!
High-tech modular control panel and multiple circuit status indicator lights make field service fast and easy.
Ultra-dependable which helps reduce your operating costs.
Three-door design segregates service areas from the money vault. Interior vault panels are keyed separately with Medeco® screw locks.
Our high strength service door locks, tightly fitting door panels, and reinforced side rails discourage vandalism and robbery. Keeping your profits secure is one of our top priorities.
Money vault features our layered two-door security. This vault access design offers you even greater protection.
High capacity vac filtration system for maximum airflow. Cuts your maintenance costs.
Motors - two stage, 900w electric, by-pass. Filters - 4 filter bag system, 15 sq. ft. filtration area, synthetic media.
Airflow - 194 cfm, 87” suction (water lift).
2” 15’ Diameter Hose - high flex vinyl, crushable, includes cuff and polyethylene hand tool.
Air Compressor - Heavy-duty maintenance-free.
15 ft. Shampoo Delivery Hose - Cut-resistant internal steel braided delivery hose with switch-controlled delivery at application brush.
Bill Validator - Talos bill validator, 300 bill stacker cartridge (field- programmable for $1 - $20 U.S. currency only).
Coin Mechanism - Electronic type, field-programmable (accepts up to 1-inch diameter coins/tokens).
Dual Display Timer - Solid-state, high capacity controller individually times each service (2 sec. to 8.5 minutes per coin and
up to 15 coins to start).
Tank and Cabinet - 18 gauge stainless steel with brushed finish.
Service Doors (3) - 12 gauge stainless steel. Medeco interlacing cam locks; dual thickness on the vault door.
Interior Vault Panels (2) - 12 gauge stainless steel, Medeco screw locks.
Electrical - 120 VAC, 20 Amp. Easy service access.
Mounting - Two external mounted collars and two internal mounting lugs, securable with 3/8” bolts.
Unit Dimensions - 61”H x 22”W x 27”D.
Tank Dimensions - 18.5” D x 48”H.
Unit Weight - Net 270 lbs, with shipper 316 lbs. (add 36 lbs. to shipping weight when 4-pack of chemicals is included).
Options & Accessories
Turbo Service (3rd Motor Option)
CryptoPay Credit Card System
High Polished Mirror Finish
